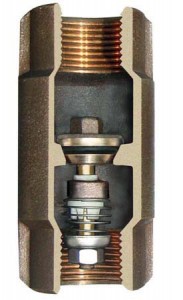

Check Valve – 500 SB Series

Check Valve – 500 SB Series
Certified Lead Free*

• Silicon bronze cast body
• Silicon bronze cast poppet
• Female Threads
• Check Valves: 1/2″ – 2″ are VFD Compatible
• Check Valves: 2-1/2″ – 6″ click here for VFD Compatible

*Certified Lead Free to NSF/ANSI 372 and NSF/ANSI 61. Meets all State and Federal safe water drinking acts including California Prop 65.

All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut.

All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.

Part No.	Size	Weight	Type	List Price
501SB	1/2 in.	.60	Spring Check Valve
502SB	3/4 in.	.80	Spring Check Valve
503SB	1 in.	1.1	Spring Check Valve
513SB*	1 in.	1.2	Spring Check Valve
504SB	1 1/4 in.	1.6	Spring Check Valve
514SB**	1 1/4 in.	1.7	Spring Check Valve
505SB	1 1/2 in.	2.1	Spring Check Valve
506SB	2 in.	3.7	Spring Check Valve
507SB	2 1/2 in.	9.5	Spring Check Valve
508SB	3 in.	10.8	Spring Check Valve
509SB	4 in.	23.6	Spring Check Valve
510SB***	5 in.	25.1	Spring Check Valve
511SB	6 in.	41.5	Spring Check Valve
* Has Longer Threads ** Has Longer Threads *** Has 5″ male threads on both ends
