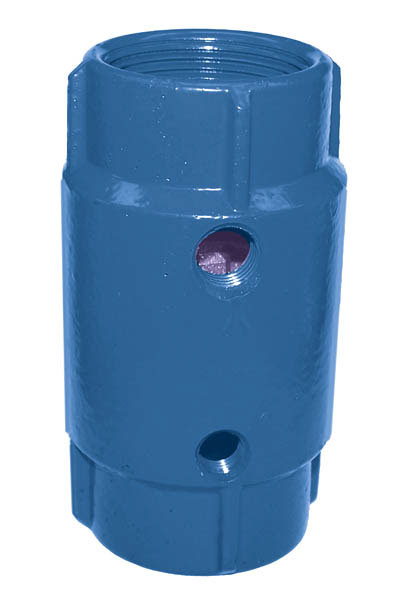

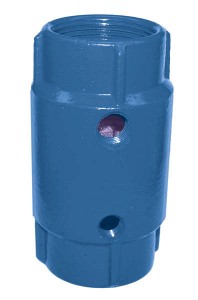

Check Valve – Ductile Iron Double Tap

Check Valve – Ductile Iron Double Tap
Certified Lead Free*

• Powder coated Ductile Iron cast body
• Silicon bronze cast poppet
• Female Threads
• Valves 2-1/2″ – 6″ can be customized with 8 Round API Threads

* Silicon bronze components contain less than .05% (1/20 of 1%) Lead

All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut.

All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.

Part No.	Part No.	Size	Tapped		Weight	List Price	List Price
Stemmed	Stemless		Inlet	Outlet		Stemmed	Stemless
6042SB	26042SB	1	1/8	1/4	1.3
6081SB	26081SB	1	1/4	1/4	1.3
6088SB	26088SB	1	1/8	1/8	1.3
6043SB	26043SB	1 1/4	1/8	1/4	1.7
6082SB	26082SB	1 1/4	1/4	1/4	1.7
6089SB	26089SB	1 1/4	1/8	1/8	1.7
6044SB	26044SB	1 1/2	1/8	1/4	2.1
6083SB	26083SB	1 1/2	1/4	1/4	2.1
6033SB	26033SB	1 1/2	1/8	1/8	2.1
6045SB	26045SB	2	1/8	1/4	3.5
6084SB	26084SB	2	1/4	1/4	3.5
6047SB	–	3	1/8	1/4	11.7		–
6048SB	–	4	1/8	1/4	21.5		–
