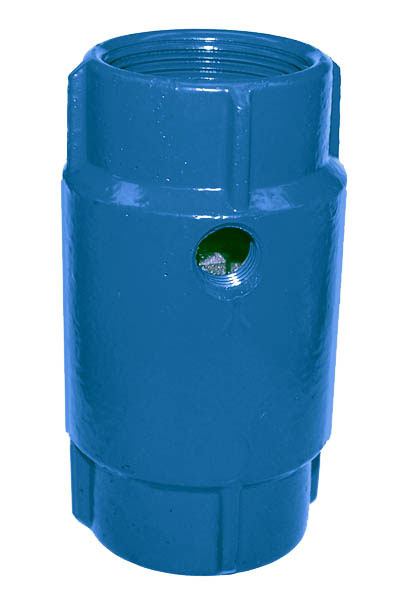

Check Valve – Ductile Iron Single Tap
Lead Free*
• Powder coated Ductile Iron cast body
• Silicon bronze cast poppet
• Female Threads
• Valves 2-1/2″ – 6″ can be customized with 8 Round API Threads
* Silicon bronze components contain less than .05% (1/20 of 1%) Lead
All check valves furnished with Buna-N O-Ring, stainless steel spring, stainless steel washer and stainless steel locknut.
All valves 3/4″ through 1-1/2″ have a working pressure of 400 psi. All valves 2″ and larger have a working pressure of 600 psi.
| Part No. | Part No. | Size | Tapped | Weight | List Price | List Price | |
| Stemmed | Stemless | Inlet | Outlet | Stemmed | Stemless | ||
| 6022SB | 26022SB | 1 | 1/8 | – | 1.3 | ||
| 6053SB | 26053SB | 1 | 1/4 | – | 1.3 | ||
| 6054SB | 26054SB | 1 | – | 1/8 | 1.3 | ||
| 6055SB | 26055SB | 1 | – | 1/4 | 1.3 | ||
| 6023SB | 26023SB | 1 1/4 | 1/8 | – | 1.7 | ||
| 6056SB | 26056SB | 1 1/4 | 1/4 | – | 1.7 | ||
| 6058SB | 26058SB | 1 1/4 | – | 1/4 | 1.7 | ||
| 6024SB | 26024SB | 1 1/2 | 1/8 | – | 2.1 | ||
| 6059SB | 26059SB | 1 1/2 | 1/4 | – | 2.1 | ||
| 6060SB | 26060SB | 1 1/2 | – | 1/8 | 2.1 | ||
| 6061SB | 26061SB | 1 1/2 | – | 1/4 | 2.1 | ||
| 6025SB | 26025SB | 2 | 1/8 | – | 3.5 | ||
| 6062SB | 26062SB | 2 | 1/4 | – | 3.5 | ||
| 6063SB | 26063SB | 2 | – | 1/8 | 3.5 | ||
| 6064SB | 26064SB | 2 | – | 1/4 | 3.5 | ||
| 6027SB | – | 3 | 1/8 | – | 11.7 | – | |
| 6028SB | – | 4 | 1/8 | – | 21.5 | – |
