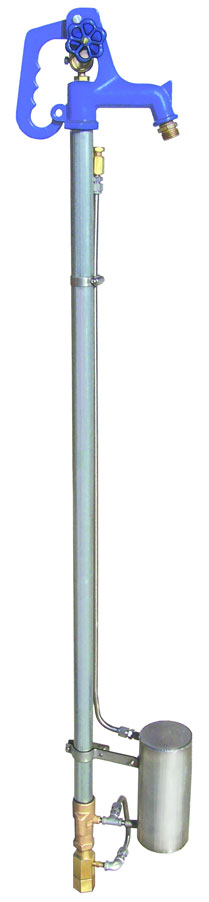

6800LF Series Sanitary Frost-Proof Yard Hydrant
Lead Free – Not for Sale in CA, LA, MD, or VT.
• 3/4” NPT Female Inlet
• 3/4” Male Hose Thread Outlet
• Cast Iron head and handle
• Stainless Steel canister
• Fully self-contained
• Sanitary – prevents cross contamination
Part No. | Bury Depth | Weight (lbs.) |
6800LF | 1′ | 20.5 |
6801LF | 1-1/2′ | 21.7 |
6802LF | 2′ | 22.9 |
6803LF | 3′ | 26.3 |
6804LF | 4′ | 28.7 |
6805LF | 5′ | 31.1 |
6806LF | 6′ | 33.5 |

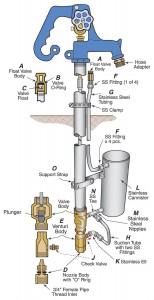

Ref. Let. | Part No. | Name of Part | List Price |
A | 6830 | Valve Float Body | |
B | 6831 | O-Ring for Valve | |
C | 6832 | Valve Float | |
D | 6845 | Nozzle | |
E | 6846 | Venturi | |
F | 6835 | 3/8 x 1/8 NPT x 4 Fittings. 3 piece Compression Fitting | |
G | 6836 | 3/8″ Stainless Steel Tubing | |
R | 6851 | 7/16″ Stainless Steel Pump Rod | |
H | 6847 | Suction Tube | |
J | 6848 | Check Valve | |
K | 6839 | 1/8″ Stainless Steel Ell | |
L | 6840 | Stainless Steel Canister | |
M | 6841 | 1/8″ Stainless Steel Nipple | |
N | 6842 | 1/8″ Stainless Steel Tee | |
P | 6849 | Support Strap | |
Q | 6852 | U-Bolt | |
Consult 800 Series parts list for any parts not listed |
Made in U.S.A. with U.S. & Import Components
Hydrant Repair
Click here to view hydrant repair instructions
Leaking Around the Packing Nut Video
Repair Kit and Plunger Replacement Video
