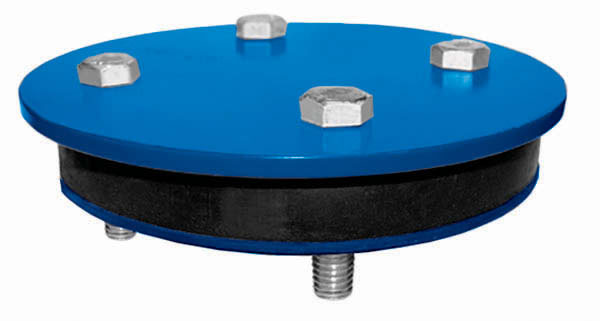

Steel Well Seal – Blank – No Tappings or Blank with Vent and Cable Tappings – Solid Top
Special drop pipe sizes, special tappings and eye-bolts available upon request.
• A36 hot roll steel
• Zinc plated steel bolts
• 3/4″ molded rubber, 35 durometer
• Powder coated polyester finish
|
Nominal Casing Size
|
Standard Gasket O.D.
|
Smaller Gasket O.D.
|
|
4
|
3.95
|
–
|
|
4 1/4 – 4 1/2
|
4.20
|
–
|
|
5
|
4.95
|
4.76
|
|
6
|
5.95
|
5.72
|
|
6 1/4
|
6.20
|
5.95
|
|
7
|
6.625
|
–
|
|
8
|
7.95
|
7.60
|
|
10
|
9.95
|
9.75
|
|
12
|
11.95
|
11.63
|
|
14
|
13.20
|
–
|
|
16
|
15.20
|
–
|
|
| Standard Gasket Part No. |
Smaller Gasket Part No. |
Well Size I.D. |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Weight |
List Price |
| 3580A |
– |
4 |
3/4 |
1/2 |
3/16 |
2,100 |
2.2 |
– |
| 3580B |
– |
4 |
– |
– |
3/16 |
2,100 |
2.3 |
– |
| 3581A |
– |
4 1/4 |
3/4 |
1/2 |
3/16 |
2,100 |
2.3 |
– |
| 3581B |
– |
4 1/4 |
– |
– |
3/16 |
2,100 |
2.4 |
– |
| 3582A |
3582A-T |
5 |
1 |
1/2 |
3/16 |
1,500 |
3.0 |
– |
| 3582B |
3582B-T |
5 |
– |
– |
3/16 |
1,500 |
3.1 |
– |
| 3583A |
3583A-T |
6 |
1 |
1/2 |
3/16 |
1,100 |
4.3 |
– |
| 3583B |
3583B-T |
6 |
– |
– |
3/16 |
1,100 |
4.4 |
– |
| 3584A |
3584A-T |
6 |
1 |
1/2 |
3/8 |
9,000 |
6.1 |
– |
| 3584B |
3584B-T |
6 |
– |
– |
3/8 |
9,000 |
6.3 |
– |
| 3585A |
3585A-T |
6 1/4 |
1 |
1/2 |
3/16 |
1,100 |
4.3 |
– |
| 3585B |
3585B-T |
6 1/4 |
– |
– |
3/16 |
1,100 |
4.4 |
– |
| 3586A |
3586A-T |
6 1/4 |
1 |
1/2 |
3/8 |
9,000 |
6.1 |
– |
| 3586B |
3586B-T |
6 1/4 |
– |
– |
3/8 |
9,000 |
6.3 |
– |
| 3599 |
– |
6 5/8 |
– |
– |
3/8 |
9,000 |
7.2 |
– |
| Standard Gasket Part No. |
Smaller Gasket Part No. |
Well Size I.D. |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Weight |
List Price |
| 3587A |
3587A-T |
8 |
1 |
1/2 |
3/8 |
6,900 |
10.8 |
– |
| 3587B |
3587B-T |
8 |
– |
– |
3/8 |
6,900 |
11.0 |
– |
| 3821A |
3821A-T |
8 |
1 |
1/2 |
5/8 |
27,000 |
12.8 |
– |
| 3821B |
3821B-T |
8 |
– |
– |
5/8 |
27,000 |
13.1 |
– |
| 3588A |
3588A-T |
10 |
1 |
1/2 |
3/8 |
3,800 |
17.6 |
– |
| 3588B |
3588B-T |
10 |
– |
– |
3/8 |
3,800 |
17.8 |
– |
| 3822A |
3822A-T |
10 |
1 |
1/2 |
3/4 |
32,000 |
20.6 |
– |
| 3822B |
3822B-T |
10 |
– |
– |
3/4 |
32,000 |
21.0 |
– |
| 3589A |
3589A-T |
12 |
1 |
1/2 |
3/8 |
2,800 |
25.3 |
– |
| 3589B |
3589B-T |
12 |
– |
– |
3/8 |
2,800 |
25.6 |
– |
| 3823A |
3823A-T |
12 |
1 |
1/2 |
3/4 |
22,000 |
29.3 |
– |
| 3823B |
3823B-T |
12 |
– |
– |
3/4 |
22,000 |
29.8 |
– |
| 3809A |
– |
14 |
1 1/4 |
1/2 |
3/4 |
16,000 |
49.3 |
– |
| 3819A |
– |
16 |
1 1/4 |
1/2 |
3/4 |
12,500 |
65.0 |
– |
Special drop pipe sizes, special tappings and eye-bolts available upon request.
|
