Well Point Dimensions

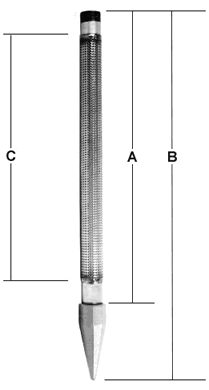

A Pipe Length	B Overall Length	C Jacket Length
24″	30″	18 7/8″
30″	36″	23 7/8″
36″	42″	30 1/4″
42″	48″	35 3/8″
48″	54″	41 1/8″
60″	66″	52 7/8″
66″	72″	59 3/4″
96″	102″	88 3/4″

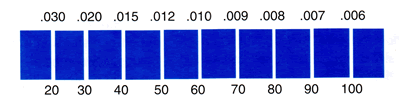

Slot SizeGauze/Mesh equivalent
