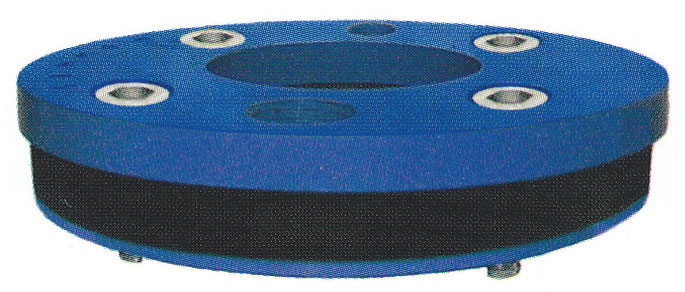

Steel Well Seal w/ Flush Bolts – Single Drop Pipe – Solid Top – Submersible Pump
• A36 hot roll steel
• Stainless steel bolts
• 3/4″ molded rubber, 35 durometer
• Powder coated polyester finish
|
Nominal Casing Size
|
Standard Gasket O.D.
|
Smaller Gasket O.D.
|
|
4
|
3.95
|
–
|
|
4 1/4 – 4 1/2
|
4.20
|
–
|
|
5
|
4.95
|
4.76
|
|
6
|
5.95
|
5.72
|
|
6 1/4
|
6.20
|
5.95
|
|
| Flush Bolts Standard Gasket Part No. |
Flush Bolts Smaller Gasket Part No. |
Well Size I.D. |
Drop Pipe Size |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Wgt |
List Price |
| 3501-F |
– |
4 |
1 |
3/4 |
1/2 |
3/16 |
2,100 |
2.1 |
– |
| 3502-F |
– |
4 |
1 1/4 |
3/4 |
1/2 |
3/16 |
2,100 |
1.9 |
– |
| 3503-F |
– |
4 |
1 1/4 Offset |
1 |
1/2 |
3/16 |
2,100 |
1.8 |
– |
| 3504-F |
– |
4 |
1 1/2 |
3/4 |
1/2 |
3/16 |
2,100 |
1.9 |
– |
| 3505-F |
– |
4 |
2 |
1/2 |
1/2 |
3/16 |
2,100 |
1.7 |
– |
| 3505-FS |
– |
4 |
2 |
1/2 (Slotted) |
1/2 |
3/16 |
2,100 |
1.7 |
– |
| 3506-F |
– |
4 |
1 Offset |
1 |
1/2 |
3/8 |
9,000 |
3.0 |
– |
| 3507-F |
– |
4 |
1 1/4 |
3/4 |
1/4 |
3/8 |
9,000 |
2.7 |
– |
| 3508-F |
– |
4 |
1 1/4 Offset |
1 |
1/2 |
3/8 |
9,000 |
2.6 |
– |
| 3509-F |
– |
4 |
1 1/2 |
3/4 |
1/2 |
3/8 |
9,000 |
2.4 |
– |
| 3510-F |
– |
4 |
2 |
1/2 |
1/2 |
3/8 |
9,000 |
2.3 |
– |
| Flush Bolts Standard Gasket Part No. |
Flush Bolts Smaller Gasket Part No. |
Well Size I.D. |
Drop Pipe Size |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Wgt |
List Price |
| 3511-F |
– |
4 1/4 – 4 1/2 |
1 |
3/4 |
1/2 |
3/16 |
2,100 |
2.2 |
– |
| 3512-F |
– |
4 1/4 – 4 1/2 |
1 1/4 |
3/4 |
1/4 |
3/16 |
2,100 |
2.0 |
– |
| 3513-F |
– |
4 1/4 – 4 1/2 |
1 1/4 Offset |
1 |
1/2 |
3/16 |
2,100 |
2.0 |
– |
| 3514-F |
– |
4 1/4 – 4 1/2 |
1 1/2 |
3/4 |
1/2 |
3/16 |
2,100 |
1.9 |
– |
| 3515-F |
– |
4 1/4 – 4 1/2 |
2 |
1/2 |
1/2 |
3/16 |
2,100 |
1.8 |
– |
| 3515-FS |
– |
4 1/4 – 4 1/2 |
2 |
1/2 (Slotted) |
1/2 |
3/16 |
2,100 |
1.8 |
– |
| 3843-F |
– |
4 1/4 – 4 1/2 |
Offset 1 |
1 |
1/2 |
3/8 |
9,000 |
3.0 |
– |
| 3844-F |
– |
4 1/4 – 4 1/2 |
1 1/4 |
3/4 |
1/2 |
3/8 |
9,000 |
2.7 |
– |
| 3845-F |
– |
4 1/4 – 4 1/2 |
Offset 1 1/4 |
1 |
1/2 |
3/8 |
9,000 |
2.6 |
– |
| 3846-F |
– |
4 1/4 – 4 1/2 |
1 1/2 |
3/4 |
1/2 |
3/8 |
9,000 |
2.4 |
– |
| 3847-F |
– |
4 1/4 – 4 1/2 |
2 |
1/2 |
1/2 |
3/8 |
9,000 |
2.3 |
– |
| Flush Bolts Standard Gasket Part No. |
Flush Bolts Smaller Gasket Part No. |
Well Size I.D. |
Drop Pipe Size |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Wgt |
List Price |
| 3521-F |
3521-T-F |
5 |
1 |
1 |
1/2 |
3/16 |
1,500 |
2.9 |
– |
| 3522-F |
3522-T-F |
5 |
1 1/4 |
1 |
1/2 |
3/16 |
1,500 |
2.7 |
– |
| 3523-F |
3523-T-F |
5 |
1 1/2 |
3/4 |
1/2 |
3/16 |
1,500 |
2.7 |
– |
| 3524-F |
3524-T-F |
5 |
2 |
3/4 |
1/2 |
3/16 |
1,500 |
2.5 |
– |
| 3525-F |
3525-T-F |
5 |
1 Offset |
1 |
1/2 |
3/8 |
9,000 |
4.0 |
– |
| 3526-F |
3526-T-F |
5 |
1 1/4 Offset |
1 |
1/2 |
3/8 |
9,000 |
3.9 |
– |
| 3527-F |
3527-T-F |
5 |
1 1/2 Offset |
3/4 |
1/2 |
3/8 |
9,000 |
3.8 |
– |
| 3528-F |
3528-T-F |
5 |
2 |
3/4 |
1/2 |
3/8 |
9,000 |
3.4 |
– |
| Flush Bolts Standard Gasket Part No. |
Flush Bolts Smaller Gasket Part No. |
Well Size I.D. |
Drop Pipe Size |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Wgt |
List Price |
| 3531-F |
3531-T-F |
6 |
1 |
1 |
1/2 |
3/8 |
1,100 |
4.2 |
– |
| 3532-F |
3532-T-F |
6 |
1 1/4 |
1 |
1/2 |
3/8 |
1,100 |
3.9 |
– |
| 3533-F |
3533-T-F |
6 |
1 1/2 |
1 |
1/2 |
3/8 |
1,100 |
4.0 |
– |
| 3530-F |
3530-T-F |
6 |
2 |
1 |
1/2 |
3/8 |
1,100 |
3.7 |
– |
| 3534-F |
3534-T-F |
6 |
1 |
1 |
1/2 |
3/8 |
9,000 |
5.9 |
– |
| 3535-F |
3535-T-F |
6 |
1 1/4 |
1 |
1/2 |
3/8 |
9,000 |
5.8 |
– |
| 3536-F |
3536-T-F |
6 |
1 1/2 |
1 |
1/2 |
3/8 |
9,000 |
5.7 |
– |
| 3537-F |
3537-T-F |
6 |
2 |
1 |
1/2 |
3/8 |
9,000 |
5.4 |
– |
| 3550-F |
3550-T-F |
6 |
2 1/2 Offset |
1 |
1/2 |
3/8 |
9,000 |
4.7 |
– |
| 3538-F |
3538-T-F |
6 |
3 Offset |
1 |
1/2 |
3/8 |
9,000 |
4.0 |
– |
| 3539-F |
– |
6 |
4 Offset |
2 – 1/2 |
1/2 |
3/8 |
9,000 |
3.0 |
– |
| Flush Bolts Standard Gasket Part No. |
Flush Bolts Smaller Gasket Part No. |
Well Size I.D. |
Drop Pipe Size |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Wgt |
List Price |
| 3541-F |
3541-T-F |
6 1/4 |
1 |
1 |
1/2 |
3/16 |
1,100 |
4.3 |
– |
| 3542-F |
3542-T-F |
6 1/4 |
1 1/4 |
1 |
1/2 |
3/16 |
1,100 |
4.1 |
– |
| 3543-F |
3543-T-F |
6 1/4 |
1 1/2 |
1 |
1/2 |
3/16 |
1,100 |
4.2 |
– |
| 3540-F |
3540-T-F |
6 1/4 |
2 |
1 |
1/2 |
3/16 |
1,100 |
3.7 |
– |
| 3544-F |
3544-T-F |
6 1/4 |
1 |
1 |
1/2 |
3/8 |
9,000 |
5.9 |
– |
| 3545-F |
3545-T-F |
6 1/4 |
1 1/4 |
1 |
1/2 |
3/8 |
9,000 |
5.8 |
– |
| 3546-F |
3546-T-F |
6 1/4 |
1 1/2 |
1 |
1/2 |
3/8 |
9,000 |
5.8 |
– |
| 3547-F |
3547-T-F |
6 1/4 |
2 |
1 |
1/2 |
3/8 |
9,000 |
5.6 |
– |
| 3548-F |
3548-T-F |
6 1/4 |
3 Offset |
1 |
1/2 |
3/8 |
9,000 |
4.1 |
– |
| 3549-F |
3549-T-F |
6 1/4 |
4 Offset |
2 – 1/2 |
1/2 |
3/8 |
9,000 |
3.1 |
– |
| 3560-F |
3560-T-F |
6 1/4 |
2 1/2 Offset |
1 |
1/2 |
3/8 |
9,000 |
4.7 |
– |
Consult factory for Seals available with flush mount
Stainless Steel bolts. Special drop pipe sizes, special tappings and eye-bolts
available upon request. |
|
Nominal Casing Size
|
Standard Gasket O.D.
|
Smaller Gasket O.D.
|
|
7
|
6.625
|
–
|
|
8
|
7.95
|
7.60
|
|
10
|
9.95
|
9.75
|
|
12
|
11.95
|
11.63
|
|
14
|
13.20
|
–
|
|
16
|
15.20
|
–
|
|
| Flush Bolts Standard Gasket Part No. |
Flush Bolts Smaller Gasket Part No. |
Well Size I.D. |
Drop Pipe Size |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Wgt |
List Price |
| 3591-F |
– |
6 5/8 |
1 |
1 |
1/2 |
1/4 |
2,000 |
6.8 |
– |
| 3592-F |
– |
6 5/8 |
1 1/4 |
1 |
1/2 |
1/4 |
2,000 |
6.6 |
– |
| 3595-F |
– |
6 5/8 |
1 1/2 |
1 |
1/2 |
3/8 |
9,000 |
6.4 |
– |
| 3596-F |
– |
6 5/8 |
2 |
1 |
1/2 |
3/8 |
9,000 |
6.2 |
– |
| 3597-F |
– |
6 5/8 |
3 |
1 |
1/2 |
3/8 |
9,000 |
6.0 |
– |
| Flush Bolts Standard Gasket Part No. |
Flush Bolts Smaller Gasket Part No. |
Well Size I.D. |
Drop Pipe Size |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Wgt |
List Price |
| 3551-F |
3551-T-F |
8 |
1 |
1 |
1/2 |
3/8 |
6,900 |
10.6 |
– |
| 3552-F |
3552-T-F |
8 |
1 1/4 |
1 |
1/2 |
3/8 |
6,900 |
10.6 |
– |
| 3553-F |
3553-T-F |
8 |
1 1/2 |
1 |
1/2 |
3/8 |
6,900 |
10.5 |
– |
| 3554-F |
3554-T-F |
8 |
2 |
1 |
1/2 |
3/8 |
6,900 |
10.4 |
– |
| 3559-F |
3559-T-F |
8 |
2 1/2 |
1 |
1/2 |
3/8 |
6,900 |
10.1 |
– |
| 3555-F |
3555-T-F |
8 |
3 |
1 |
1/2 |
1/2 |
12,000 |
10.9 |
– |
| 3556-F |
3556-T-F |
8 |
4 |
1 |
1/2 |
5/8 |
27,000 |
11.1 |
– |
| 3558-F |
3558-T-F |
8 |
5 Offset |
3/4 |
1/2 |
5/8 |
27,000 |
8.9 |
– |
| Flush Bolts Standard Gasket Part No. |
Flush Bolts Smaller Gasket Part No. |
Well Size I.D. |
Drop Pipe Size |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Wgt |
List Price |
| 3561-F |
3561-T-F |
10 |
1 |
1 |
1/2 |
3/8 |
3,800 |
17.4 |
– |
| 3562-F |
3562-T-F |
10 |
1 1/4 |
1 |
1/2 |
3/8 |
3,800 |
17.1 |
– |
| 3563-F |
3563-T-F |
10 |
1 1/2 |
1 |
1/2 |
3/8 |
3,800 |
17.0 |
– |
| 3564-F |
3564-T-F |
10 |
2 |
1 |
1/2 |
3/8 |
3,800 |
16.9 |
– |
| 3569-F |
3569-T-F |
10 |
2 1/2 |
1 |
1/2 |
5/8 |
16,500 |
22.5 |
– |
| 3565-F |
3565-T-F |
10 |
3 |
1 |
1/2 |
5/8 |
16,500 |
21.5 |
– |
| 3566-F |
3566-T-F |
10 |
4 |
1 1/4 |
1/2 |
5/8 |
16,500 |
19.7 |
– |
| 3567-F |
3567-T-F |
10 |
5 |
1 1/4 |
1/2 |
3/4 |
32,000 |
19.6 |
– |
| 3568-F |
3568-T-F |
10 |
6 |
1 |
1/2 |
3/4 |
34,000 |
15.9 |
– |
| Flush Bolts Standard Gasket Part No. |
Flush Bolts Smaller Gasket Part No. |
Well Size I.D. |
Drop Pipe Size |
Cable Hole Tapping |
Vent Tapping |
Top Plate |
Max. Load |
Wgt |
List Price |
| 3571-F |
3571-T-F |
12 |
1 |
1 |
1/2 |
3/8 |
2,800 |
24.9 |
– |
| 3572-F |
3572-T-F |
12 |
1 1/4 |
1 |
1/2 |
3/8 |
2,800 |
24.0 |
– |
| 3573-F |
3573-T-F |
12 |
1 1/2 |
1 |
1/2 |
3/8 |
2,800 |
24.0 |
– |
| 3574-F |
3574-T-F |
12 |
2 |
1 |
1/2 |
1/2 |
6,600 |
29.9 |
– |
| 3575-F |
3575-T-F |
12 |
3 |
1 |
1/2 |
5/8 |
12,000 |
30.6 |
– |
| 3576-F |
3576-T-F |
12 |
4 |
1 1/4 |
1/2 |
5/8 |
12,000 |
29.6 |
– |
| 3577-F |
3577-T-F |
12 |
5 |
1 1/4 |
1/2 |
3/4 |
22,000 |
30.7 |
– |
| 3578-F |
3578-T-F |
12 |
6 |
1 1/4 |
1/2 |
3/4 |
22,000 |
27.1 |
– |
| 3594-F |
3594-T-F |
12 |
8 |
1/2 (2) |
1/2 |
3/4 |
22,000 |
20.6 |
– |
Consult factory for Seals available with flush mount
Stainless Steel bolts. Special drop pipe sizes, special tappings and eye-bolts
available upon request. |
